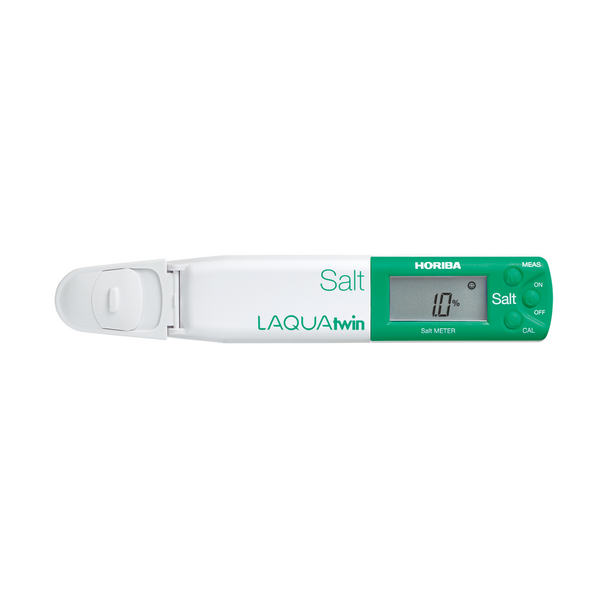

LAQUAtwin Salt-22

HORIBA’s unique compact meter integrates the electrode, display and sample container to enable simple, effective on-site testing by direct measurement from a single drop.

Request a Quote

Description

The only pocket meter that directly measures sodium ion concentration in 0.3ml sample (or 0.05ml sample with sampling sheet B) and converts it into salinity or NaCl salt concentration. No need for a beaker to calibrate the meter or measure a sample. Just place a few drops of the standard or sample onto the sensor. This procedure saves you time and prevents wasting your precious sample.

  • Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)
  • Salinity, mV, and temperature display
  • Up to 2 calibration points
  • Auto calibration
  • Auto standard recognition: 0.5 & 5.0% NaCl (default)
  • Changeable high and low calibration values
  • Temperature calibration: 5 to 40.0 ºC
  • Auto stable / auto hold measurement
  • Auto power off: 30 mins.
  • Low battery indicator
  • IP67 Rating dust & waterproof
  • Replaceable sensor
  • 400 Hours battery life: continuous use without backlight
  • Material: ABS epoxy
  • Display: custom (monochrome) digital LCD with backlight
  • Operating conditions: 5 to 40 ºC, 85% or less relative humidity
  • Warranty: 2 years – meter; 6 months – sensor
  • Packed in handy carrying case
  • Supplied with 0.5% & 5.0% NaCl standards (14ml each), 5 x sampling sheets B, 2 x CR2032 batteries, dropper, instruction and quick manuals

Additional information

Measurement Principle

Ion Selective Electrode

Minimum Sample Volume

0.3ml (0.05ml with sampling sheet B)

Salinity Range

0.01 to 25% by weight

Resolution

0.00 to 0.99%: 0.01%
1.0 to 9.9%: 0.1%
10 to 25%: 1%

Calibration Points

Up to

Accuracy

±10% of reading value

Temperature Display

0 to 50.0 ºC

Temperature Calibration

5 to 40.0 ºC

Display

Custom (monochrome) LCD with backlight

Operating Humidity

85% or less relative humidity (no condensation)

Operating Temperature

5 to 40°C

Power

CR2032 batteries (2)

Battery Life

Approx. 400 hours in continuous use (without backlight)

Material

ABS epoxy body

Dimensions

164 x 29 x 20 mm (excluding projections)

Mass

Approx. 55 g (including sensor and batteries)

Functions

Auto Calibration
Auto Standard Recognition
Changeable High & Low Calibration Values
Temperature Calibration
Auto Hold / Auto Stable Measurement
Switchable Backlight
Automatic Power Off (30mins)
Low Battery Indicator
IP67 Dust / Waterproof
Replaceable sensor
