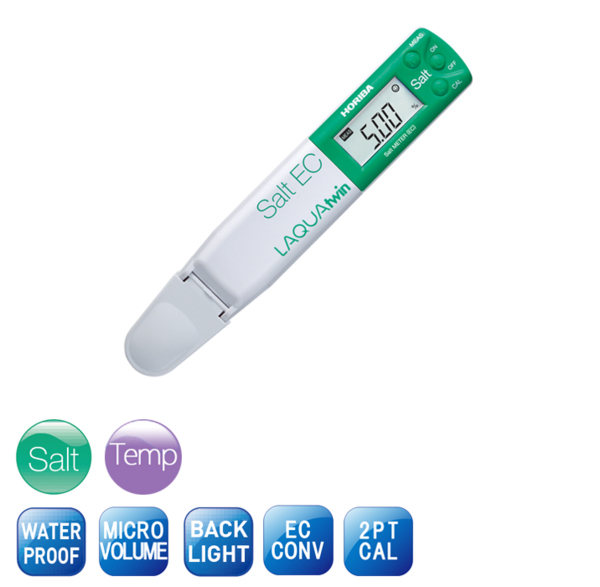

LAQUAtwin Salt-11

HORIBA’s unique compact meter integrates the electrode, display and sample container to enable simple, effective on-site testing by direct measurement from a single drop.

Request a Quote

Description

The only pocket meter that directly measures conductivity in 0.12ml sample and converts it into salinity or salt concentration. No need for a beaker to calibrate the meter or measure a sample. Just place few drops of the standard or sample onto the sensor. This procedure saves you time and prevents wasting your precious sample.

  • Minimum sample volume: 0.12ml
  • Salinity and temperature display
  • Up to 2 calibration points
  • Auto calibration
  • Auto standard recognition: 0.50 & 5.00 % NaCl
  • Auto temperature compensation: 2%/ºC fixed
  • Temperature calibration: 5 to 40.0 ºC
  • 2 Salinity curves: NaCl & Seawater
  • Auto stable / auto hold measurement
  • Auto power off: 30 mins.
  • Low battery indicator
  • IP67 Rating dust & waterproof
  • Replaceable sensor
  • 400 Hours battery life: continuous use without backlight
  • Material: ABS epoxy body & titanium coated with platinum black sensor
  • Display: custom (monochrome) digital LCD with backlight
  • Operating conditions: 5 to 40°C, 85% or less relative humidity
  • Warranty: 2 years – meter, 6 months – sensor
  • Packed in handy carrying case
  • Supplied with 0.5% & 5.0% NaCl standards (14ml each), conditioning solution (4ml), 2 x CR2032 batteries, dropper, instruction and quick manuals

Additional information

Measurement Principle

2 Electrode Bipolar AC

Minimum Sample Volume

0.12ml

Salinity Range & Resolution

0.0 to 100.0 g/L (ppt): 0.1 g/L
0.00 to 10.00%: 0.01%

Calibration Points

Up to 2

Calibration Curves

NaCl & Seawater

Accuracy

±2% full scale (0.0 to 9.9 g/L)
± 4% full scale (10.0 to 100.0 g/L)

Temperature Display

0 to 50.0 °C

Temperature Calibration

5 to 40.0 ºC

Display

Custom (monochrome) LCD with backlight

Operating Humidity

85% or less relative humidity (no condensation)

Operating Temperature

5 to 40°C

Power

CR2032 batteries (2)

Battery Life

Approx. 400 hours in continuous use (without backlight)

Material

ABS epoxy body & titanium coated with platinum black sensor

Dimensions

164 x 29 x 20 mm (excluding projections)

Mass

Approx. 50 g (including sensor and batteries)

Functions

Auto Calibration
Auto Standard Recognition
Temperature Compensation (2%/ºC fixed)
Temperature Calibration
Auto Hold / Auto Stable Measurement
Switchable Backlight
Automatic Power Off (30mins)
Low Battery Indicator
IP67 Dust / Waterproof
Replaceable sensor
