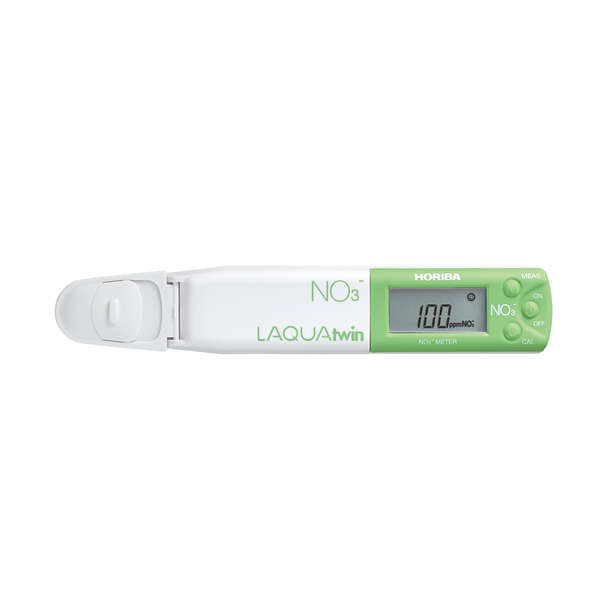

LAQUAtwin NO3-11C/NO3-11S/NO3-11

HORIBA’s unique compact meter integrates the electrode, display and sample container to enable simple, effective on-site testing by direct measurement from a single drop.

NO3-11C – (for crops)

NO3-11S – (for soil)

NO3-11 – (for general use)





Request a Quote
Category: Tags: , Brand:

Description

The only pocket meter that directly measures nitrate ion and nitrate-nitrogen concentrations in 0.3ml sample (or 0.05ml sample with sampling sheet B). Unique sensor allows measurement of viscous liquids, solids, and even powder samples. No need for a beaker to calibrate your meter or measure a sample. Just place a few drops of the standard or sample onto the flat sensor. This procedure saves you time and prevents wasting your precious sample.

  • Minimum sample volume: 0.3ml (0.05ml with sampling sheet B)
  • Up to 2 calibration points
  • Auto standard recognition
  • Changeable high and low calibration values
  • Multiplication compensation: 0.01 to 9.90
  • Temperature and mV display
  • Temperature calibration: 5 to 40.0 ºC
  • Auto hold / auto stable measurement
  • Auto power off: 30 mins.
  • Low battery indicator
  • IP67 Rating dust & waterproof
  • Replaceable sensor
  • 400 Hours battery life: continuous use without backlight
  • Material: ABS epoxy
  • Display: custom (monochrome) digital LCD with backlight
  • Operating conditions: 5 to 40 ºC, 85% or less relative humidity
  • Warranty: 2 years – meter, 6 months – sensor
  • Packed in handy carrying case
  • Supplied with accessories (see specifications for more details)

Additional information

Measurement Principle

Ion Selective Electrode

Minimum Sample Volume

0.3ml (0.05ml with sampling sheet B)

Nitrate (NO3-) Measurement Range

6 to 9900 ppm (mg/L)

Nitrate-Nitrogen (NO3-N) Measurement Range

1.4 to 2200 ppm (mg/L)
0.7 to 1100 kg/10a

Resolution

6 to 99 ppm: 1 ppm
100 to 990 ppm: 10 ppm
1000 to 9900 ppm: 100 ppm

Accuracy

± 10% of actual value

Calibration Points

Up to 2

Temperature Display

0 to 50.0 °C

Display

Custom (monochrome) LCD with backlight

Operating Humidity

85% or less relative humidity (no condensation)

Operating Temperature

5 to 40°C

Power

CR2032 batteries (2)

Battery Life

Approx. 400 hours in continuous use (without backlight)

Material

ABS epoxy

Dimensions

164 × 29 × 20mm (excluding projections)

Mass

Approx. 55 g (including sensor and batteries)

Functions

Auto Standard Recognition
Changeable High & Low Calibration Values
Temperature Calibration
Multiplication Compensation
Auto Hold / Auto Stable Measurement
Switchable Backlight
Automatic Power Off (30mins)
Low Battery Indicator
IP67 Dust / Waterproof
Replaceable Sensor
