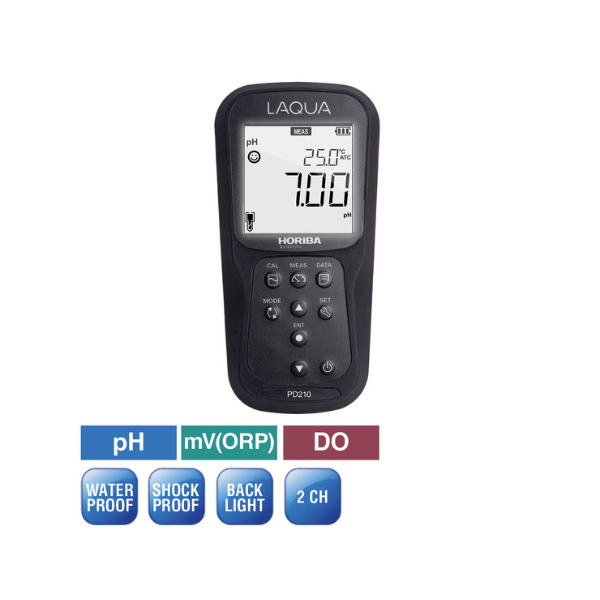

Horiba handheld pd210 water quality meter

LAQUA PD210

Handheld pH/ORP/Dissolved Oxygen/Temperature Meter

Waterproof standard handheld meters with backlit LCD, shockproof & scratch-resistant non-slip casing, built-in electrode stand, and foldable meter stand in a durable carrying case for routine water quality testing in the field.

Meter Kit

  • LAQUA PD210 Dual channel pH/ORP/Dissolved Oxygen/Temperature meter
  • 2 x AA batteries
  • Manual and quick guide
  • 9652-20D plastic-body, gel-filled pH electrode integrated with temperature sensor, 2m cable
  • 9552-20D galvanic DO probe integrated with temperature sensor, 2m cable
  • pH 4.01, 7.00, 10.01 buffers (60ml each)
  • Electrode adapter
  • Carrying case



Request a Quote
Category: Tag: Brand:

Description

  • Automatic pH calibration – up to 5 points (NIST, USA pH buffers) / up to 6 points (DIN pH buffers)
  • 0.01 pH resolution
  • Offset and average slope display
  • Automatic / manual temperature compensation and temperature calibration function
  • ORP calibration option
  • Dissolved oxygen (DO) concentration in ppm (mg/L) and % saturation
  • 0.01 mg/L or 0.1% DO resolution
  • Compensates salinity, temperature, and atmospheric pressure
  • Up to 2 DO calibration points
  • Auto log data; built-in memory can store up to 500 data
  • Auto shut-off (programmable: up to 30 minutes)
  • Auto stable, auto hold, and real time measurement modes
  • Calibration alarm (programmable: up to 90 days)
  • Built-in electrode holder allows 2 electrodes to be attached
  • Monochrome LCD with white LED backlight: 50 x 50 mm
  • Casing is IP67 waterproof/dust proof, shock & scratch resistant, non-slip
  • Powered by 2 x AA batteries
  • Packaged with electrodes and calibration solutions in a carrying case
  • 3 years meter warranty
pH Range -2.00 to 16.00 pH
Resolution 0.01 pH
Accuracy ± 0.01 pH
Calibration Points Up to 5 (USA & NIST) / Up to 6 (DIN)
Buffer Options USA, NIST, DIN
ORP Range ± 2000 mV
Resolution 0.1 mV (< ±1000 mV), 1 mV (≥ ±1000 mV)
Accuracy ±0.3 mV (< ±1000 mV), 0.3% of reading (≥ ±1000 mV)
Calibration Option Yes
DO Range 0.00 to 20.00 mg/L / 0.0 to 200.0 %
Resolution 0.01 mg/L or 0.1 %
Accuracy ±0.1 mg/L
Salinity Compensation 0.0 to 40.0 ppt
Barometric Pressure Compensation Yes
Temperature Compensation Yes
Calibration Points Up to 2
DO Probe Type Galvanic integrated with temperature sensor
Temperature Range -30.0 to 130.0 °C / -22.0 to 266.0 °F
Resolution 0.1 °C / °F
Accuracy ± 0.5 °C / ± 0.9 °F
Calibration Option Yes
Memory Data 500
Auto Log Data Yes
Measurement Modes Auto Stable, Auto Hold, Real Time
Offset & Average Slope Display Yes
Calibration Alarm Yes (Programmable: up to 90 days)
Auto Shut-Off Yes (Programmable: up to 30 minutes)
Electrode Status Yes (On screen display)
Diagnostic Messages Yes
Meter Inputs 2 x BNC (for pH and DO electrodes), 2 x phono (for temperature sensors)
Display Custom LCD with backlight
Housing IP67, shock & scratch resistant, non-slip
Power Requirement 2 x AA batteries
Battery Life > 500 hours
Meter Dimensions 160 (L) x 80 (W) x 40.60 (H) mm
Meter Weight Approx. 260g (with batteries) / 216g (without batteries)
