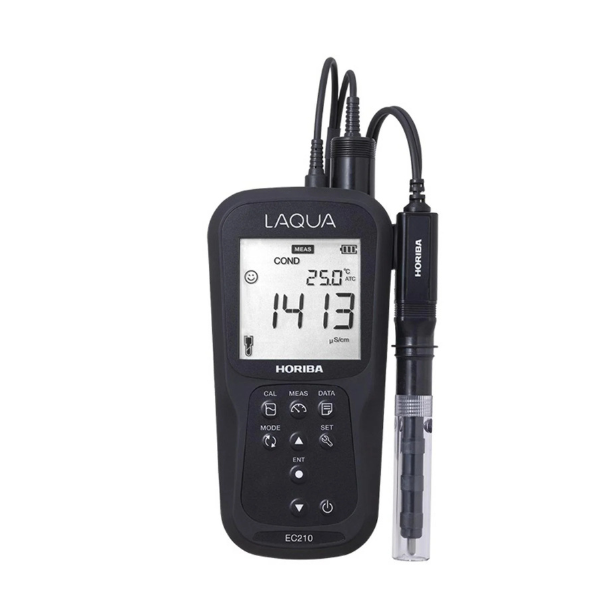

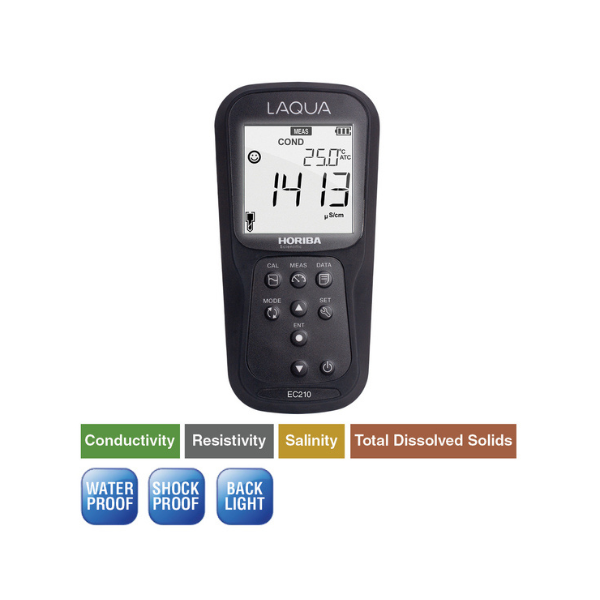

Horiba handheld ec-210 water quality meter
LAQUA EC210 - Image 2

LAQUA EC210

Handheld Conductivity/Resistivity/Salinity/Total Dissolved Solids/Temperature Meter

Waterproof standard handheld meters with backlit LCD, shockproof & scratch-resistant non-slip casing, built-in electrode stand, and foldable meter stand in a durable carrying case for routine water quality testing in the field.

Meter Kit

  • LAQUA EC210 Conductivity/Resistivity/Salinity/TDS/Temperature meter
  • 2 x AA batteries
  • Manual and quick guide
  • 9383-10D plastic-body, Ti/Pt black conductivity probe (k=1.0) integrated with temperature sensor
  • 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm conductivity standard solutions (60ml each)
  • Carrying case



Request a Quote
Category: Tag: Brand:



  • Automatic (up to 4 points) and manual (up to 5 points) conductivity calibration
  • Adjustable reference temperature and temperature coefficient
  • Adjustable cell constant and selectable measurement unit
  • Automatic / manual temperature compensation and temperature calibration function
  • Conductivity and total dissolved solids (TDS) conversion
  • Four (4) TDS calibration curves for wide range of applications: EN27888, Linear, 442, NaCl
  • Two (2) salinity calibration curves: NaCl, Seawater
  • °C & °F temperature readings
  • Auto log data; built-in memory can store up to 500 data
  • Auto stable, auto hold, and real-time measurement modes
  • Auto shut-off (programmable: up to 30 minutes)
  • Monochrome LCD with white LED backlight: 50 x 50 mm
  • Powered by 2 x AA batteries
  • Casing is IP67 waterproof/dustproof, shock & scratch resistant, non-slip
  • Packaged with electrode and calibration solutions in carrying case
  • 3 years meter warranty
Conductivity Range …µS/cm to 200.0 mS/cm (k=1.0)
Resolution 0.05% full scale
Accuracy ±0.6% full scale; ±1.5% full scale > 18.0 mS/cm
Reference Temperature 15 to 30 °C (adjustable)
Temperature Coefficient 0.00 to 10.00% (adjustable)
Cell Constant 0.1, 1.0, 10.0 (adjustable)
Calibration Points Up to 4 (Auto) / Up to 5 (Manual)
Measurement Unit S/cm, S/m (selectable / auto-ranging)
TDS Range …ppm to 100 ppt (TDS factor=0.5)
Resolution 0.01 ppm (mg/L) / 0.1 ppt (g/L)
Accuracy ±0.1% full scale
TDS Curves Linear (0.40 to 1.00), EN27888, 442, NaCl
Resistivity Range 0.000 Ω•cm to 20.0 MΩ•cm
Resolution 0.05% full scale
Accuracy ±0.6% full scale; ±1.5% full scale > 18.0 MΩ•cm
Salinity Range 0.0 to 100.0 ppt / 0.00 to 10.00 %
Resolution 0.1 ppt / 0.01%
Accuracy ±0.2% full scale
Salinity Curves NaCl / Seawater
Calibration Option Yes
Temperature Range -30.0 to 130.0 °C / -22.0 to 266.0 °F
Resolution 0.1 °C / °F
Accuracy ± 0.5 °C / ± 0.9 °C
Calibration Option Yes
Memory Data 500
Auto Log Data Yes
Measurement Modes Auto Stable, Auto Hold, Real Time
Auto Shut-Off Yes (Programmable: up to 30 minutes)
Electrode Status Yes (On screen display)
Diagnostic Messages Yes
Meter Inputs BNC (for conductivity electrode), phono (for temperature sensor)
Display Custom LCD with backlight
Housing IP67, shock & scratch resistant, non-slip
Power Requirement 2 x AA batteries
Battery Life > 500 hours
Meter Dimensions 160 (L) x 80 (W) x 40.60 (H) mm
Meter Weight  Approx. 260g (with batteries) / 216g (without batteries)
