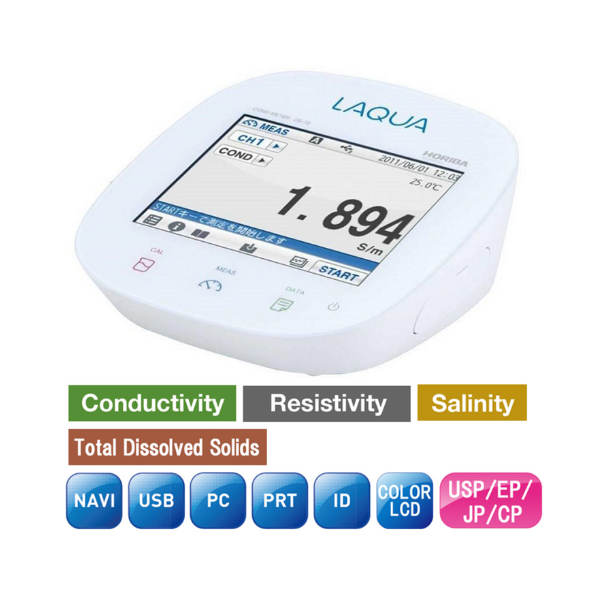

LAQUA DS-72

Benchtop Conductivity/Resistivity/TDS/Salinity/Temperature Meter

Stress-free measurement, high-end model
Water quality analysis is repeatedly performed in laboratories daily. Our high-end benchtop model was developed to provide simplicity with excellent on-site usability – from operation and maintenance through to troubleshooting.

Meter Kit

  • DS-72 meter
  • Electrode stand
  • Protection cover
  • Universal power adaptor with 6 plugs
  • Instruction manual



Request a Quote

Description

LAQUA DS-72 meter measures conductivity, resistivity, salinity, total dissolved solids (TDS) and temperature parameters and complies with industrial pharmacopoeia standards (JIS, USP, EP, JP and CP).

The meters’ auto diagnostic function allows the user to make sure that the instruments will always give high-performance and reliable measurements. Fully GLP/GMP compliant, the LAQUA can be connected to an external printer. To ensure traceability, all results are recorded together with sample name, user ID and calibration information.

We offer a comprehensive range of conductivity electrodes adapted to all types of applications and samples. Recognised for their stability and longevity, HORIBA’s electrodes provide accurate measurement in all conditions.

LAQUA’s large capacitance touch screen panel

  • The display is easy to understand and functions menu is shown
  • Switch between digital real time graphs or analogue displays during measurement with just flick of a finger
  • Full on-screen support on the meter via an electronic user guide with colour pictures that can be called-up at any time, a problem-solving guide for calibration and measurement



Functions:

  • Easy navigation for meter and display available for electrode condition check
  • Full support for various pharmaceutical pure water guidelines (USP/EP/JP/CP)
  • Auto-hold function for calibration and measurement
  • Simultaneous connection to a GLP/GMP compatible printer and computer
  • Digital memory – maximum 2,000 sets of measurement data can be recorded
  • USB-PC communication and USB memory
  • Multi-language support (Japanese, English, Chinese, Korean)

Additional information

Conductivity Range

0.000 μS/cm ~ 19.99 mS/cm (k = 0.1 cm-1)

0.00 μS/cm ~ 199.9 mS/cm (k = 1.0 cm-1)

0.0 μS/cm ~ 1.999 S/cm (k = 10.0 cm-1)

Selectable Unit

Yes

Distilled Water Temperature Conversion

Yes

Periodical Check

Yes

JIS/CP/JP/USP/EP Pharmaceutical Water Application

Yes

Salinity Range

0.00 to 80.00 ppt

(0.000 to 8.000%)

Salt Concentration Calibration

Yes

Resistivity Range

k = 0.1 cm-1:0.00 kΩ・cm ~ 199.9 MΩ・cm

k = 1.0 cm-1:0.000 kΩ・cm ~ 19.99 MΩ・cm

k = 10 cm-1:0.0 Ω・cm ~ 1.999 MΩ・cm

TDS Range

0.01 mg/L to 1000 g/L

Method

Conversion from conductivity

Temperature Range

-30.0 to 130.0°C

Resolution

0.1°C

Repeatability

±0.1°C ±1 digit

Input

BNC, phono

Output

USB, RS232C, Analog

Data Memory

2000

ID Input

Yes

Display

Touch Screen Color LCD

Languages

English, Japanese, Chinese, Korean

Navigation Function

Yes

Temperature Compensation

Auto / Manual

Auto HoldSetting

Yes

Password Setting

Yes

Software Upgrade Function

Yes

Operating Temperature

0 to 45°C

Dimensions

170(W) x 174(D) x 73(H) mm

Weight

700g
